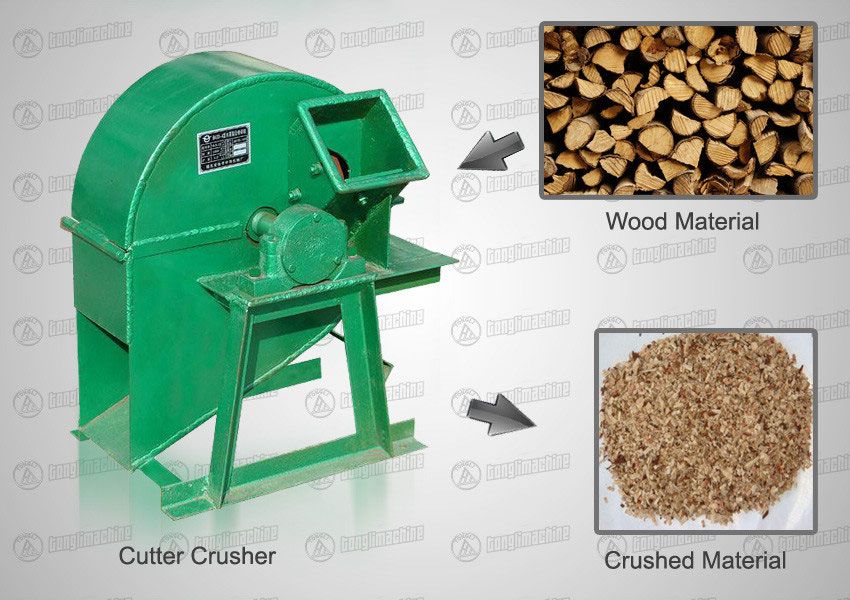

Wood Crusher

The cutter crusher can process wood, branches and other materials into wood chips. This crusher is mainly composed of shaving device, crushing device and fan, which can be used for material crushing before or after carbonization.

wood-crusher

Model	Power kw	Capacity kg	Cutter diameter	Cutter No.	Weight kg	Dimensions m
40	7.5	480	0.4	4	350	1.25×0.65×0.75
60	18.5	1300	0.6	6	1100	1.8×1.3×0.9
80	22	2000	0.7	6	5000	2.1×1.5×1.3

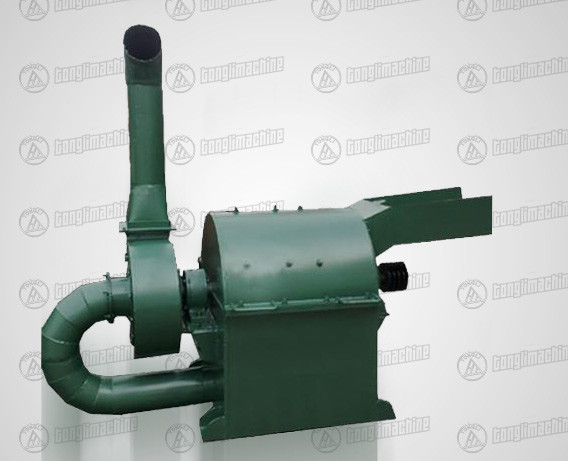

Charcoal Crusher

The charcoal crusher is used for crushing materials after carbonization. The crushed charcoal powder can be fully grinded before wheel grinding mixing. The general charcoal production flow is raw material-carbonization-crushing-mixing-charcoal forming-charcoal products. But for some special raw materials like coconut shell, the production flow can be raw material-coarse crushing-carbonization-fine crushing-mixing-charcoal moulding-charcoal products.

charcoal-crusher

Model	Power kw	Capacity kg	Hammer blades	Bearings	Weight kg	Size m
450	5	500	16	306	120	1.1×0.7×1.2
600	7.5	700	16	307	150	1.3×0.9×1.4
750	11	1000	24	307	200	1.5×1.0×1.6
