Rods Machine 50

Product Introduction:

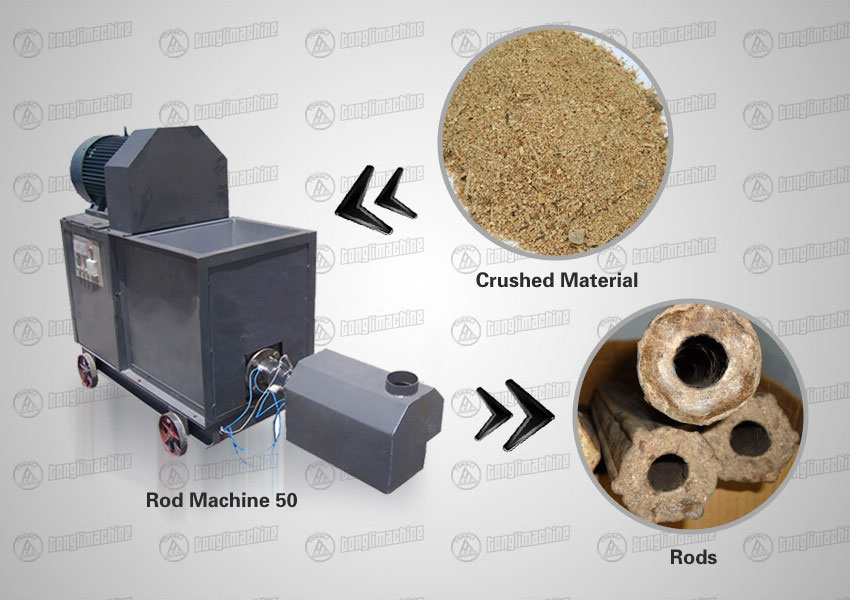

By Charcoal Briquette Machine 50 , the waste that can be recycled such as wood waste, forest waste, coconut shells, rice hulls and olive scum can be grinded, dried, molded and carbonized to get charcoal rod.


rod-making-machine

 Features:
1. Perfect working performance: Temperature adjusting indicator, it can work steadily at the fixed temperature. Rational structure, it is easy to operate and maintain.
2. Superior quality of the final products: The solid stick produced by this machine is easy to light with high calorific value, high density which is favorable for transportation.
3. This machine can make full use of the remainder of farm and forest.
4. Uniform size: An inner molding is equipped with the shaping mould, which ensures the shape and final size of the products.
5. Low investment and energy consumption, high output, high-quality finished products, easy to operate and maintain, etc.

Technical Parameters:
Machine Model
50 80 Latest
Capacity
150--180kg/h
230--280kg/h
230--280kg/h
Power
15kw
18.5kw
22kw
Output Products Diameter
50mm
50mm
80mm
Machine Dimension
1.7*0.75*1.35(m)
1.8*0.8*1.6(m)
1.85*0.75*1.45(m)
Weight
850kg
900kg
1000kg
Raw Materials
Sawdust, wood chips, biomass, etc
Briquette Shape
Round, square, hexagonal sticks with holes inside
